Air-bearing single-stage compressor agent band: Korea Namwon

（Product Introduction）

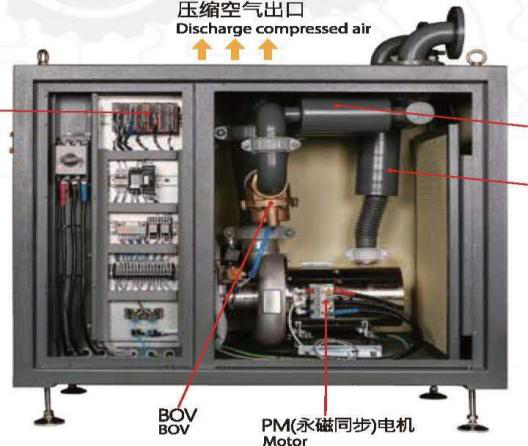

Air foil bearing: non-contact bearing that uses the compressed force by the wedge effect of the surrounding air of the shaft rotating at high speed to support the load of the rotor no use of lubricant semi-permanent life. High-speed permanent magnet synchronous motor(pmsm): turbo one pm motor minimizes high frequency losses based on design for high-speed rotation to realize a 98% efficient speed motor.
（Core Strengths）
Energy-saving & energy-reduction (up to 45%): high-efficient design in the compression part & application of high-efficient motors, comprehensive efficiency is 65% or higher, and the certificate of high efficiency energy using appliance acquired from Korea energy management corporation.Low-noise, no-vibration& long lifespan: low noise(75-80db-@1m or lower) due to the application of direct connection to air bearing (no contact among devices), no need for sound-proof facilities.Special and perfect discharge compressed air and BOV silencer design settings.
（Service advantage）
With the business model of “service +manufacturing+service”, the company provides users with end-to-end complete and full life cycle system solutions, such as system R&D design, fluid machinery product manufacturing, system energy-saving transformation services. The PLC control system developed independently can realize optimal matching between unit energy consumption and system operating condition. Ensure to provide users with efficient, safe and reliable gas compressor products, and provide gas compression station general contracting services, such as EPC, BOT,BOO modes. The company will insist on the road of specialization, and finally achieve the long-term development goal of “ building a century old enterprise and creating a world-class”.
scope of application
The products are widely used in water treatment facilities, mechanical conveying system(mcs), dehumiditication, drying &fuel desulfurization compositing fermentation, sand blasting, incinerators, oxygen supply, plating bath, back washing, etc.
Technical Parameters

Model	（m³/min）	（mmAq）	（HP）	Outlet Dia. （A）	Dimension（mm）			Weight（Kg）	Cooling
					W	D	H
TB20-0.7	13	7000	20	150	700	1200	1100	600	AIR
TB30-0.8	18	8000	30	150	700	1200	1000	600
TB50-0.8	29	8000	50	150	700	1200	1000	600
TB75-0.8	44	8000	75	200	850	1400	1400	720
TB100-0.8	57	8000	100	200	850	1400	1400	750
TB120-0.8	70	8000	120	200	850	1400	1400	750
TB150-0.8	88	8000	150	300	900	1750	1650	950
TB200-0.8	114	8000	200	300	900	1750	1650	1000
TB250-0.8	114	8000	250	300	900	1750	1650	1000
TB300-0.8	176	8000	300	400	1200	2200	2000	1300
TB400-0.8	228	8000	400	400	1800	2500	1910	1500
TB600-0.8	352	8000	600	500	2300	2600	2200	2100
