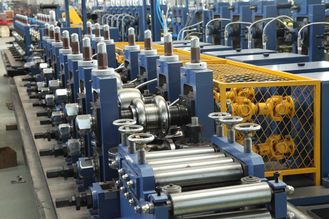

Tube Forming Machine

Low Carbon Steel Tube Forming Machine For Industrial Pipe Production

76.2- 168MM Tube Forming Machine for Construction Tube Production, Furniture Tube Making



Tube forming machine specification



1. pipe O.D(round):76.2mm-168mm

2. Wall thickness:2.0mm-6.0mm

3. length:4-12m

4. Speed:60m/min



Basic necessaries for the Buyer:

Steel strips material Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa
I.D Φ450~Φ5080mm
O.D Φ600~2000mm
Width 240-520mm
Thickness 2.0-6.0mm
Maximum.weight ≤6000KGS



Accordingly to the market demands. We are given the standard models as blew, and this is for your reference

only, the production range and main technical can be adjustable suppose your company have special requirement.

Tube forming machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16



7.6-16

0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40



Machine Advantage



Steel Tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only tube making machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology.





Tube making machine application:



Tube forming machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction, precision tubes, auto tubes, fence, heat exchanger, furniture, pressureproduction, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.





Tube forming machine production process:



According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table

Type Of Welding: High Frequency Welding Application: Construction
Type Of Forming: Forming By Rollers Origin: Zhangjiagang City, China
Special Requirement: Can Be Design As Per Customer Requirement
