F series single suction centrifugal fan/Air blower/motor drive/factory ventilation/air cooling/cement plant/power plant/Metal smelting/de-dusting/bag fliter fan

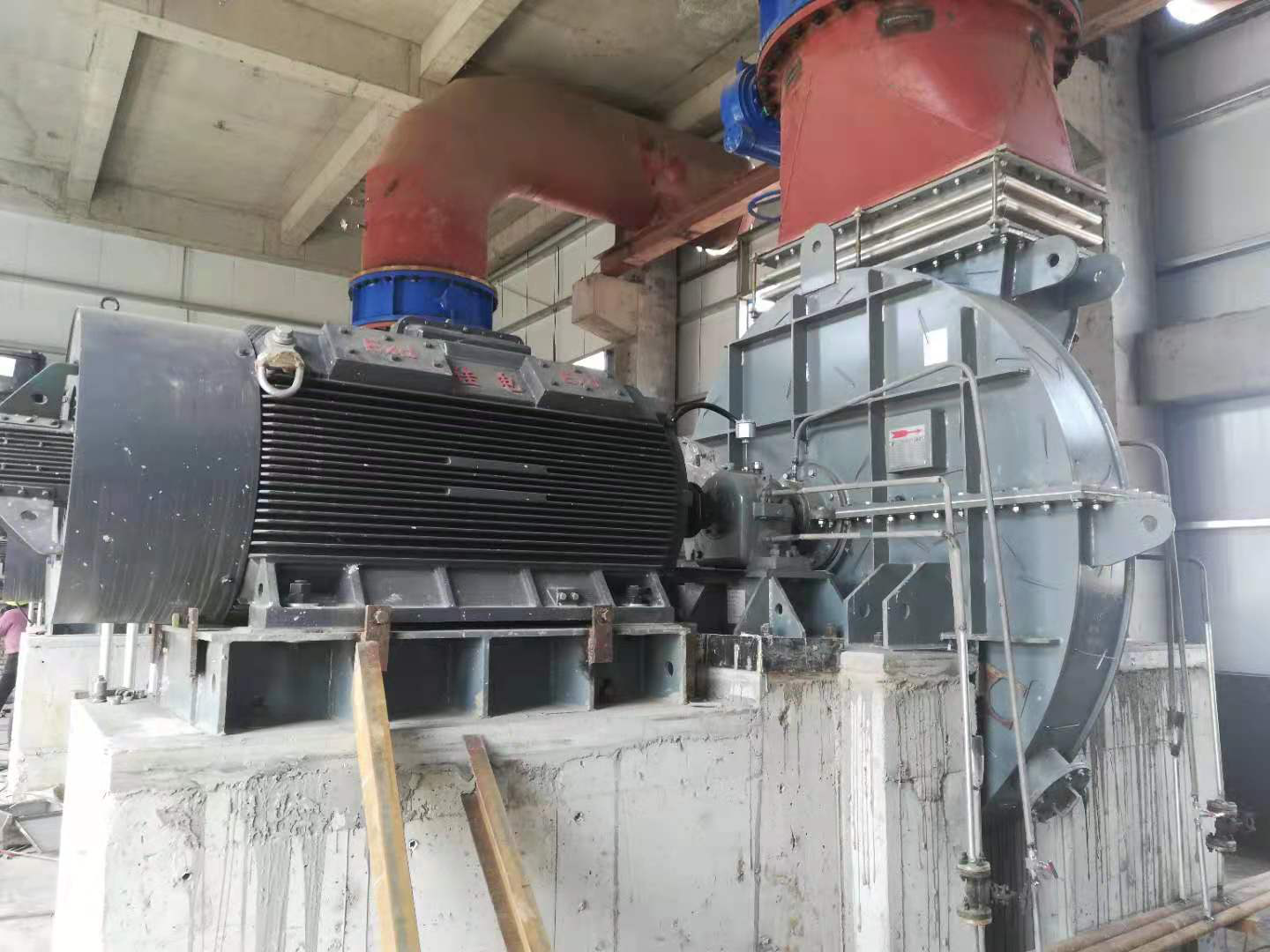

Single-Suction Rotor - Double-Supported with Direct Coupling
This construction will be used for fans with rotor diameter between 1,000 mm and 3000 mm under single suction.
The rotor has the support of two bearings, whereas these bearings are on opposite sides in relation to the rotor, i.e., support of the double-supported type or central rotor (Center Hung).
Two kinds base arrangement will be used.
1. Provide the equipment with a metal base which will allow customer to build a flat concrete base (with neither housing fittings nor bearing overhangs).The equipment will be supplied fully assembled on its metal base.
2. a concrete base for each part fixed by foundation bolts. the equipment will be assembled on site
Professional design,
mature manufacturing process,
standard management,
high-end production equipment,
skilled production workers
high standard quality requirements
High efficiency
factory/building ventilation
air/gas transport
cooling
Generally used for ventilation, process gas transport. Widely used in many industries.
Cement plant, power plant , chemical, Metal smelting, water treatment, De-dusting system, Food, Paper making, industrial gas
