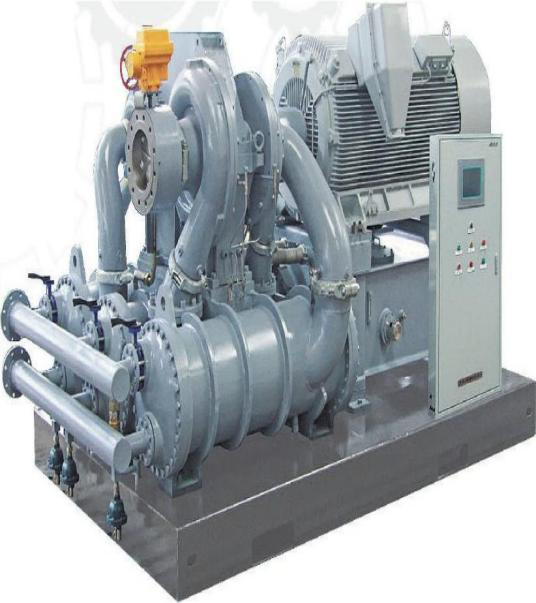

JE series high-efficiency centrifugal air compressor

（Product Introduction）
Complete ETI technology for a full package of whole equipment design, manufacture and testing; Standard configuration: core compressor parts, inlet expansion joint, inlet IGV, cooling system, lubrication system, control system, emptying component, vent check valve, vent expansion joint; Optional: inlet filter, monitoring system, sound proof box, electric motor of over IP54.

（Core Strengths）
High aerodynamic efficiency for optimum aerodynamic characteristics, made the impeller efficiency reach over 92%;Excellent multiple shafting rotor design for optimum rotor stability and bearing loading;Design and manufacture based on API, AGMA and other top standards, resulting in higher stability of unit operation;Integrated modular construction, facilitating installation and maintenance.
The whole set of American ETI technology has been imported, and the key components have independent intellectual property rights. Air compression system, cooling system, lubrication system, and the control system are integrated into a complete structure. Reliable multi-shaft-rotor dynamic design can realize the stable operation of the compressor in all working conditions. Key core components( gears, bearings, seals, oil pumps, filters, oil coolers, monitoring sensors, etc) are all well-known brands at home and abroad. Standard modular design, convenient maintenance. Design of monitoring, protection and regulation in one control system, the interface is intuitive and friendly.
（Service advantage）
With the business model of “service +manufacturing+service”, the company provides users with end-to-end complete and full life cycle system solutions, such as system R&D design, fluid machinery product manufacturing, system energy-saving transformation services. The PLC control system developed independently can realize optimal matching between unit energy consumption and system operating condition. Ensure to provide users with efficient, safe and reliable gas compressor products, and provide gas compression station general contracting services, such as EPC, BOT,BOO modes. The company will insist on the road of specialization, and finally achieve the long-term development goal of “ building a century old enterprise and creating a world-class”.
scope of application
The products have found wide applications in high-pressure gas supply stations and industries like steel and iron, nonferrous metallurgy, petrochemical, pharmaceutical, paper-making, textile, automotive, home appliance, electronics, shipbuilding, glass-making, mining industrial high-pressure gas sectors etc.
Product service
Provide comprehensive technical service support for customers. Provide free technical services and products maintenance training to customers( Factory training or user on-site training); Establish on-line product operation monitoring network, provide free inspection service every 3 months to customers.
Spare parts service
Standard parts design and batch inventory of wearing parts and spare parts can provide customers with impellers, gears,bearings, seals, coolers, oil filters, etc at any time, and customers can realize zero inventory of spare parts. The cost of equipment maintenance and spare parts replacement decreased by more than 20%.
Quick response service
The user’s technical services and training guidance needs; User on-site equipment diagnosis and troubleshooting, within 24 hours of reply, technical service personnel within 48 hours to reach the user site.
Technical Parameters

Model	Flow (m³/min)	Outlet pressure (BarG)	Motor Power (KW)	Weight (T)	Dimension
					Length(m)	Width（m）	Height（m ）
JE6000	80~130	2.2~10.5	355~800	10.6	4.1	2.0	2.4
JE9000	130~200	2.2~10.5	500~1250	13.8	4.3	2.2	2.6
JE15000	200~315	2.2~10.5	710~1800	18.6	5.0	2.4	2.8
JE21000	315~500	2.2~10.5	1000~2800	23.5	6.6	2.8	3.0
JE30000	500~800	2.2~10.5	1400~4000	31.0	7.2	3.4	3.8
JE36000	600~1000	2.2~10.5	1600~6000	38.0	8.5	4.0	4.8
JE48000	800~1500	2.2~10.5	1800~8000	45.0	10.5	4.8	5.6
JE72000	1000~1800	2.2~10.5	3000~10000	56.0	12.5	5.5	6.0
Remark: stream turbine driving optional.
