Tube Making Machine

ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler

Material Of Stand: Forged Steel Material Of Roller: D3 Or D2
Power Supply: 380v, 50HZ,3phase Type Of Roller Change: Top Lift
Forming Design: W Forming


6 Inch API 5CT standard tube, ASTM A 53 Steel tube making machine

1: Main Technical Parameters of ZY165 Tube Making machine

Raw material  hot rolled steel, galvanized steel
Round tube outer diameter 76.2mm-165m
Wall thickness Round tube 2.0mm-6.0mm
Tube welding speed 60m/min



2: Basic Production flow



Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table→



The above production flow is based on the standard, according to different standard of the pipe, it may add hydro testing machine, end facing machine, ECT testing equipment etc.





3: Market distribution



At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.



4:  Technical Advantage



Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.



5: Tube Making Machine specification



Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Steel Pipe Making Machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22

40

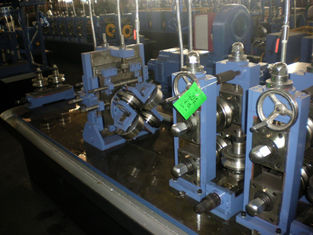

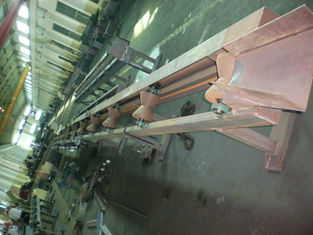

6: Picture reference



ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler
