Steel Pipe Production Line

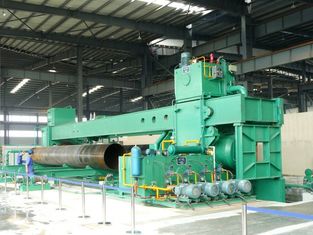

Hydro Testing Equipment Pipe Production Line Steel Keeping Pressure

Type Of Testing: Hydro Testing With Water Medium Application: Section Steel Pipe, Steel Profile
Working Position: Single/double/triple Feature: High Speed, High Precision
Special Requiment: Can Be Deisgn As Per Customer Requirement




ALL SOLUTIONS FOR STEEL PIPE/TUBE PRODUCTION







Machine Model :ZY-76/89/168/219



Raw material steel pipe for BS Standard, A53 standard etc
Round tube outer diameter 21.3mm-219mm divide by different machine model
Wall thickness Round tube 1.5mm-8.0mm
Tube testing speed accoridng to different machine model



Hydro Testing Equipment Pipe Production Line Steel Keeping Pressure



Technology Advantage



pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Production Line manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.



Brief of Steel Pipe Production Line application



Steel Pipe Production Line as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.



Market distribution



At the beginning, we are manufacturing and selling the Steel Pipe Production Lines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Production Line has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.



Steel Pipe  hydro testing machine Production Line production process



According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.



Feeding pipe after bevelling→ Washing→ Taking to the V rollers→ Clamping→ Low pressure pumping→ Supercharging→ Keeping pressure(5sec)→ Pressure Reliefing→ Opening the clamping device→ Pulling out







Steel Pipe Production Line specification

Accordingly to the market demands.

We are given the standard models as blew, and this is for your reference only,

the production range and main technical can be adjustable suppose your company have special requirement.



Steel Pipe Production Line Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40
