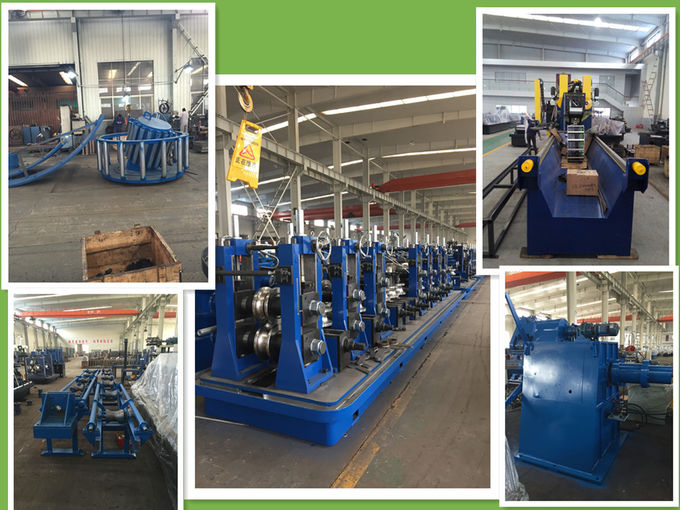

Pipe Welding Machine

High Precision Pipe Welding Machine Automatic Run Out Table Stable

ZY-219 construction pipe,  section pipe, water & gas pipe production line



Raw material application HR steel, carbon and low carbon
Production OD range(mm) 88.9-219
Production thickness range(mm) 2.0-8.0
Design line speed 50m/min





High Precision Pipe Welding Machine Automatic Run Out Table Stable





1: Machine information



High-frequency ERW straight seam pipe making machine could produce the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting “W” forming type, it could make much more reasonbale force, and much more perfect forming shape at each stand etc, finish pipes widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.



2: Brife of Production process

The machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.



High Precision Pipe Welding Machine Automatic Run Out Table Stable





3. Technoly Advantage

Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Pipe welding machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.





4. Market distribution

At the beginning, we are manufacturing and selling the Pipe welding machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Pipe welding machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.





5. Pipe welding machine specification

Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Pipe welding machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40



6.  Technical Service



Pre-Contract: we can design the machine as per your personal request, and make workshop arrangement as per your desire free of cost.

After-Contract: One year warranty after the machine selles, but the whole life of the machine have the after service support from us.

Production suppport: We can arrange video conference when your machine in trouble, our technical team are ready with you in any time..

Type Of Welding: High Frequency Welding Application: Section Pipe, Gas&water Transportation, Construction Pipe
Type Of Formin: Forming By Rollers Feature: High Speed, High Precision
Special Requirment: Can Be Design As Per Customer Requirement
